R-701AHD 7 Inch IPS LCD Vehicle Rear View Mirror Monitor
SCREEN
7 Inch IPS LCD Screen
RESOLUTION
1024*600
Triggers Line
3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
VIDEO INPUT
3CH AHD 1080P 720P Video Signal Input
TV SYSTEM
PAL NTSC Automatically
IMAGE DISPLAY
Mirror or Normal Image
Other
Multi-Language Settings, Horizontal Mirror Image Switching
Multiple
You can view the required devices in multiple options.
Warranty
2-Years Warranty on All of Backup Camera System.
Customized
Support Customized metal LOGO plate/Customized label.
Product Features
Screen Size
Screen Ratio
Resolution
Video
TV System
Remote Control
AHD Signal
Multi-language
DC12v-24v
Mirror/Non-mirror
Product Describe

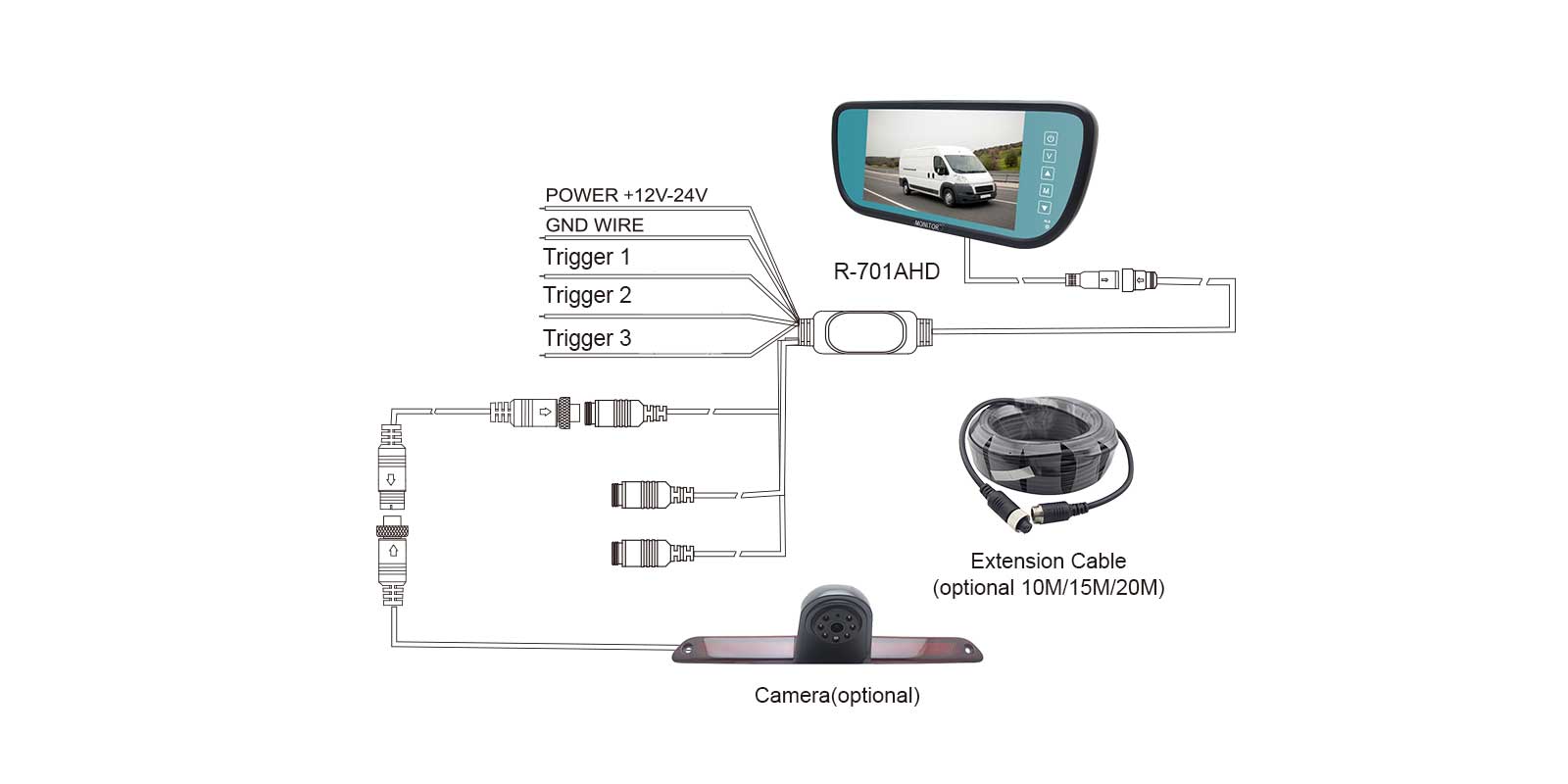

Product DetailsReplacement MirrorReversing Guide LineSize InformationOperationConnection Diagram & Size
7 Inch 1024*RGB*600 IPS LCD Digital Screen (16:9 Screen Ratio)
Touch Button Design Easy To Operation
Mirror monitor can be directly clipped onto the original interior mirror, or optional special bracket to replace the original mirror. Support 3CH AHD 1080P/720P camera input, can connect 3CH car camera at the same time, real-time display of vehicle surroundings, effectively reduce the risk of accidents caused by blind spots.
25*10.7*3 CM / 9.8*4.2*1.2 INCH
- Display Screen
- Power
- AV Switch
- Volume Increase, Menu Analog Quantity Increase
- MENU: Open or Exit The Menu
- Volume Decrease, Menu Analog Quantity Decrease
- Power
- Switch Over
- “+”
- Menu
- “-“
- Mode Select
